Wico EK, PR & OC & R Magneto Parts
The Wico EK is the most popular high-tension mag for 1 cylinder stationary engines. The PR is an earlier version of the EK. The OC and R mags were used on oil field engines. Some parts are also available for the earlier oscillating mags like the AX. Call, e-mail, or write with needs.

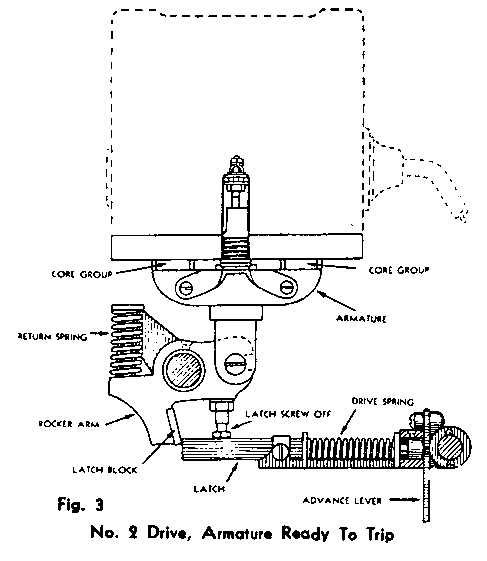

There are three common types of drives (and a number of less common ones) for EK mags. They are known as Type 1, Type 2, & Type 3. Before ordering springs, you must decide which type you have. Click on the following to see sketches of the drive types:
|
Order number |
Description |
Picture |
Price each |
|
WIC045 |
Cover,
front, brass with stop button |
|
20.00 |
|
WIC046 |
Cover,
front, brass, no stop button |
|
18.00 |
|
WIC048 |
Cover,
rear, brass |
|
16.00 |
|
WIC049 |
Wrap
around band, brass |
|
28.00 |
|
WIC021 |
EK
coil set |
|
115.00 |
|
WIC024 |
PR
coil set |
|
115.00 |
|
WIC030 |
OC
coil set, 1 left and 1 right Avalable again fall
'08 |
|
130.00 |
|
WIC033 |
R
coil set, 1 left and 1 right Available again fall '08 |
|
130.00 |
|
CND01 |
Condenser,
EK, PR, AX or OC, new type |
|
5.00 |
|
WIC041 |
Condenser,
original type, more easily installed, for EK, PR, AX, or OC |
|
8.00 |
|
WIC055 |
Insulator
strip, most common |
|
1.00 |
|
WIC056 |
Insulator
strip, thin |
1.00 |
|
|
WIC058 |
Lead-out
tower, EK |
|
6.00 |
|
WIC059 |
Lead-out
tower with screw in button, brass insert, & spring, OC or PR |
|
30.00 |
|
WIC063 |
Mounting
casting, EK |
|
35.00 |
|
WIC066 |
Nut,
7/32 x 32 |
|
0.50 |
|
WIC070 |
Oil
felt, EK or PR |
|
1.00 |
|
WIC080 |
Point
set, EK, includes 2 oil felts |
|
18.00 |
|
WIC064 |
Point
tube and alignment pin plate (points not included) |
|
45.00 |
|
WIC082 |
Rocker
arm, EK drive type 2 |
|
28.00 |
|
WIC083 |
Roller,
case hardened |
|
3.00 |
|
WIC086 |
Screw,
7/32 x 32 with nut & washer |
|
7.00 |
|
WIC089 |
Spring
holder arm, return type 2 |
|
11.00 |
|
WIC090 |
Spring,
drive, EK, type 1 |
|
5.00 |
|
WIC091 |
Spring,
return, EK, type 1 |
|
5.00 |
|
WIC092 |
Spring,
drive, EK, type 2 |
|
5.00 |
|
WIC093 |
Spring,
return, EK, type 2 |
|
5.00 |
|
WIC094 |
Spring,
drive, EK, type 2, Witte TG |
|
5.00 |
|
WIC095 |
Spring,
return, EK, type 2, Witte TG |
|
5.00 |
|
WIC096 |
Spring,
drive, EK, type 3 |
|
5.00 |
|
WIC097 |
Spring,
return, EK, type 3 |
|
5.00 |
